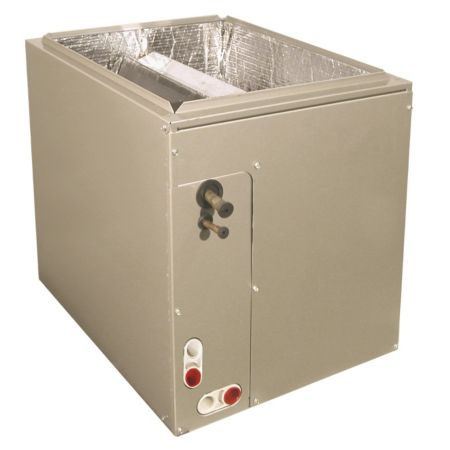

EAM4X Cased Multiposition Aluminum Coil

Categories: ,


Cased Multiposition installation − upflow, downflow, or horizontal

Model : EAM4X

Standard Features

  • 1−1/2 thru 5 Tons
  • Bolt−on R−410A TXV metering device factory installed on all models (equalizer tube brazed in)
  • TXV and manifold positioned to the side for easier cleaning
  • Innovative drain pan design for complete water removal
  • 2−piece delta plate for easier removal and cleaning
  • Cabinet widths match flush with ICP gas furnaces
  • Removable front access panel
  • Hemmed flanges for safer handling
  • Foil faced insulation
  • Non−sweat cabinet, even at extreme conditions
  • Cabinets meet or exceed 2% air leakage codes
  • Sturdy, pre−painted steel cabinet
  • One or two UV light knock−outs provided on cabinet (depending on size)
  • Aluminum main tubing and aluminum fins (copper stubs
  • for field connection)

EAM4X only


  • Two condensate drain connections



    (Additional two for horizontal installation)







  • Multiposition installation − upflow, downflow or horizontal.




  • �0;0;0;0;0;0;0;2; 5 year parts limited warranty –


With timely registration, an additional 5 year parts limited



* For owner occupied, residential applications only. See warranty certificate for complete details and restrictions,including warranty coverage for other applications.

Title Type Size
Product Specification application/pdf 295 KB
